EPS Sandwich Wall Panel Forming Machine Fireproof Mgo Wall Board Making Machine

EPS Sandwich Wall Panel Forming Machine Fireproof Mgo Wall Board Making Machine
EPS Sandwich Wall Panel Forming Machine Fireproof Mgo Wall Board Making Machine
EPS Sandwich Wall Panel Forming Machine Fireproof Mgo Wall Board Making Machine EPS Sandwich Wall Panel Forming Machine Fireproof Mgo Wall Board Making Machine EPS Sandwich Wall Panel Forming Machine Fireproof Mgo Wall Board Making Machine EPS Sandwich Wall Panel Forming Machine Fireproof Mgo Wall Board Making Machine EPS Sandwich Wall Panel Forming Machine Fireproof Mgo Wall Board Making Machine

Large Image :  EPS Sandwich Wall Panel Forming Machine Fireproof Mgo Wall Board Making Machine

Product Details:
Place of Origin: China
Brand Name: chuangxin
Certification: CE
Model Number: XD-003
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 Sets per year

EPS Sandwich Wall Panel Forming Machine Fireproof Mgo Wall Board Making Machine

Description
Product Name: Building Moulding Board Machine Texture Of Material: Steel
Warranty: 1 Years Automatic Grade: Automatic

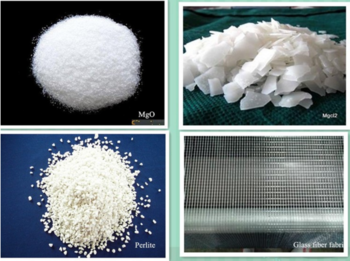

Raw Material: Mgo,mgcl,fiber Glass Mesh Standard: CE
Type: Free Standing Main Process: Forming
Application: Wall Place Of Origin: Shandong China
High Light:

roll forming machinery

,

lightweight wall panel machine

Heat Resistant EPS Sandwich Wall Panel Forming line fireproof mgo wall board making machine

We are glad to invite you and your talent company to join us and be a partner of us together to explore the market of building materials. As a leading manufacture of new type fireproof board production line, We win the markets depending on high quality, competitive price, unique design group, soonest shipment and our excellent service groups.

I Equipment Feature

This machine adopts the technology of double-drive double-roller-extruding, and

the product is formed once after sizing, material feeding, spreadingno-woven

cloth, compounding and repressing. The equipment runs stably with high

automatic degree, and the specification of its product can be adjusted arbitrarily.





II Project Feature

1. The source of the production raw materials is widely with no regional restriction.

The product is made of sawdust, straw (rice hulls), many kinds of crop straw and

inorganic material (such as talcum powder, infusorial earth and powder coal ash)

after special technology. So this project have low production cost, small

investment and fast effectiveness.

4

2. The equipment has high automatic degree, simple production technology, low

labor intensity and production line, and there is no noise and three-wastes (waste water, waste gas and waste residue) during production.

3. Low production energy consumption. With the influence of chemical reaction,

it can meet the requirements about production technology without high temperature

and high pressure.



III.Product Feature and Performance

1 Air-dry density ≤ (Standard index)50kg/m2 (Test Value) 30.0kg/ m2
2

Drying shrinkage

rate of the board

≤0.08% 0.015%
3 Anti-breaking load ≥1400N 5640N
4 Anti-impact

No breakage phenomenon

such as cracking after

three impacts

No breakage

phenomenon

such as cracking after

three impacts

5

Thermal resistance

of main section (T=90mm)

≥1.35(m2.k)/w ≥1.36(m2.k)/w
6 Thermal bridges area ratio ≤8% 2.22%
7 Sound insulation Index   36dB
8 Radioactivity   None



EPS Sandwich Wall Panel Forming Machine Fireproof Mgo Wall Board Making Machine 1

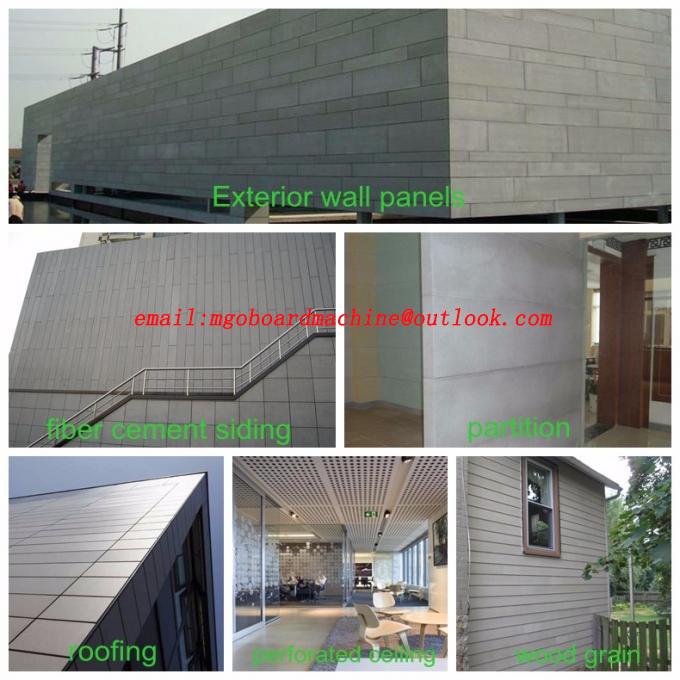

IV.Wall Board Feature

1. Anti-earthquake with light quality:
In view of its weight per unit area is only 1/10 of red brick wall, the product has good anti-earthquake performance. It can be used at low-rise building and high-rise building, and it is preferred to be used at workshop with steel frame structure. It can replace the color steel plate with its better performance.
2. Fast and convenient operation:
It can be installed by board or combination with the dry method, and the product can be nailed, cut, planed, drilled and sticked.
3. Low comprehensive cost:
The product is made of agricultural and industrial wastes, so the production cost is low. With the low load of girder and short construction period, it can reduce over 20% of engineering cost after compared with solid brick and hollow brick.
4. Energy-saving and environmental protection:
The production processing need no high temperature and high pressure. Being a green environmental-protection energy-saving building materials, the product has no toxicity, harm, pollution and radioactivity.
5. Increasing the usage area:
Under the same condition of heat-preserving and sound insulation, with the thinner plate, the product can increase over 10% usage area after compared with the same building.
6. Having the following features:
water-proof
anti-impact
acid & alkali resistant
anti-aging.
♦insect proof
♦easy to install
♦low weight and high strength
♦environmentally friendly
♦mildew proof
♦highly decorative
♦fire prevented
♦sound insulation

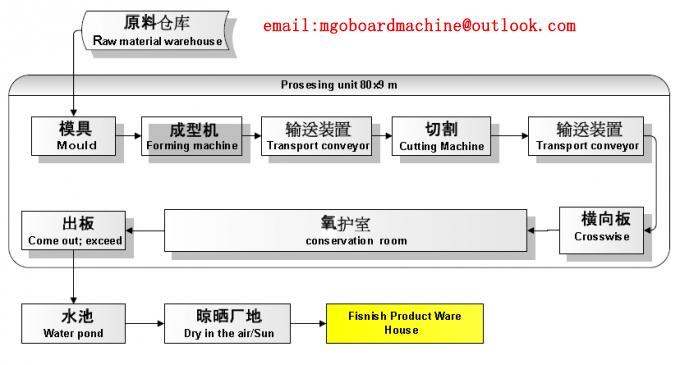

V.Production Conditions
Wall board production line has workshop and raw material warehouse. Workshop: over 300m2-800 m2, worker: 10-16 person; fresh water; electricity:8-20KW
EPS Sandwich Wall Panel Forming Machine Fireproof Mgo Wall Board Making Machine 2

VI. Benefit Analysis
(I) Cost accounting
Raw material: 19-25 Yuan/ m2 (according to different thickness); Wage: 1 Yuan/ m2
Water-electricity fee: 0.5 Yuan/ m2; Depreciation of the equipment: 0.2Yuan; Management fee: 1 Yuan/ m2
Total: 21.7 Yuan~27.70 Yuan/ m2
(II) Profit analysis: (Take the small-scale equipment as example)
production: 800 m2 per day, at the price of 58 Yuan/ m2 to sell, and then the profit per day is that 800 m2 ×58 Yuan/ m2-800 m2×21.7~27.70=29040~24240 Yuan.
VII.Services

We not only supply MgO Board Production Lines, but also provide other services like:

1. Assemble machines at customer's factory

2. Production techniques training

3. Machine up-grade and maintenance
